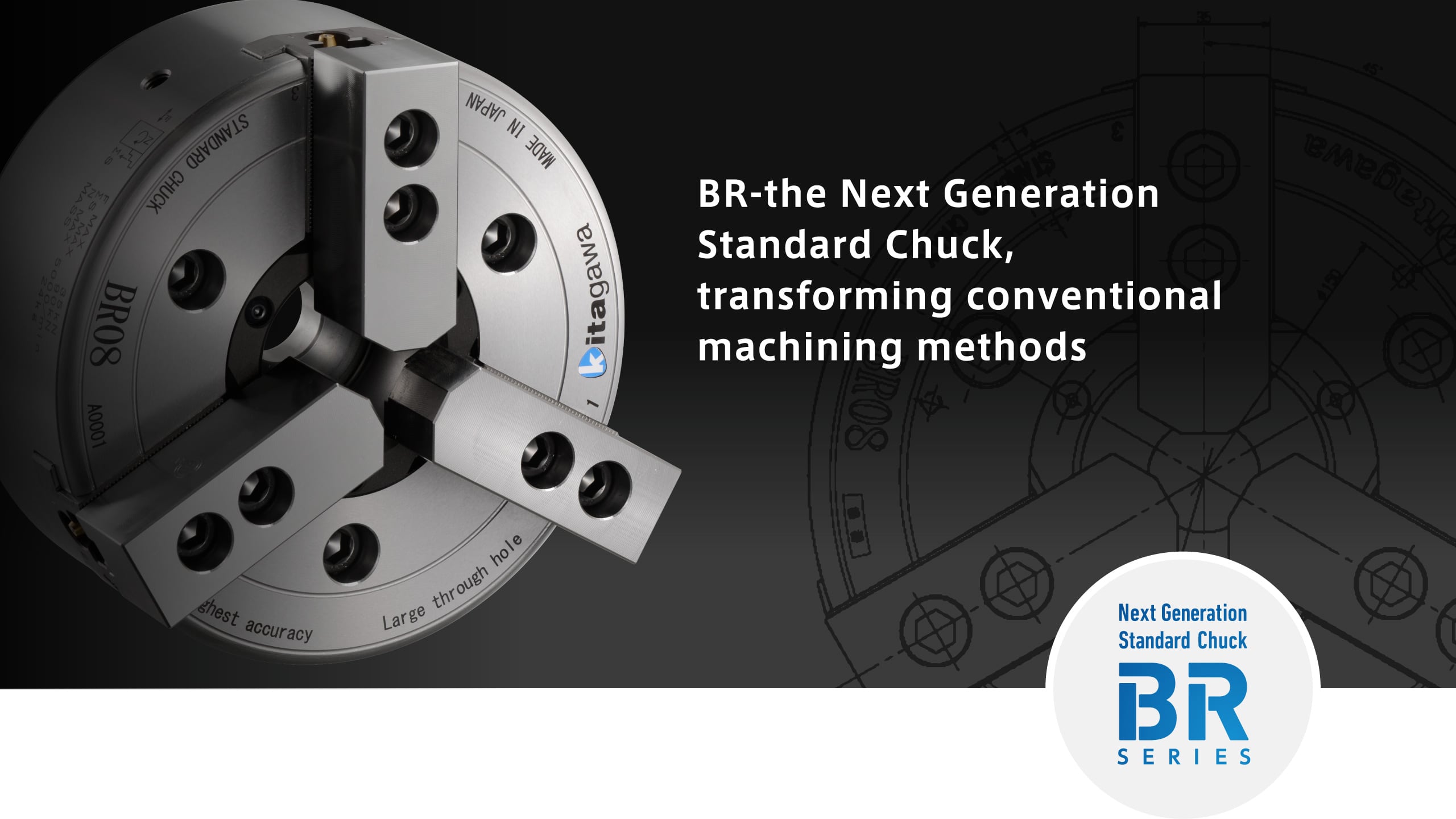

BR the Next Generation Standard Chuck

BR series – the Next Generation Standard Chuck,
possessing extraordinary high precision

Gripping accuracy of 0.01mm T.I.R.※3 or less immediately after jaw forming.
Reduced jaw-lift achieving stable machining accuracy.
With the use of optional Tnut-Plus the chuck maintains the gripping accuracy of 0.01mm T.I.R.※3 or less even after removing and attaching formed jaws. There is no need to reform jaws.

  • 0.01mm Gripping accuracy
  • 0.01mmT.I.R. Gripping accuracy after removing and attaching formed jaws
  • 450hours reduced a year
  • With the use of optional Tnut-Plus.
    The chuck maintains the gripping accuracy of 0.01mm T.I.R. or less even after removing and attaching jaws.
  • Assuming 3 setup changes per day, 30 minutes jaw forming per setup change
  • Only for BR12, the gripping accuracy is 0.015mm T.I.R.

To master a BR series

  • Disassembly of BR chuck

    Disassembly procedure of BR chuck

  • Removal of BR chuck

    Removal procedutre of BR chuck

  • Installation of BR chuck

    Installation procedure of BR chuck
